01
Line Design
A complete packaging system engineered around your product, throughput, floor space, and labor goals.

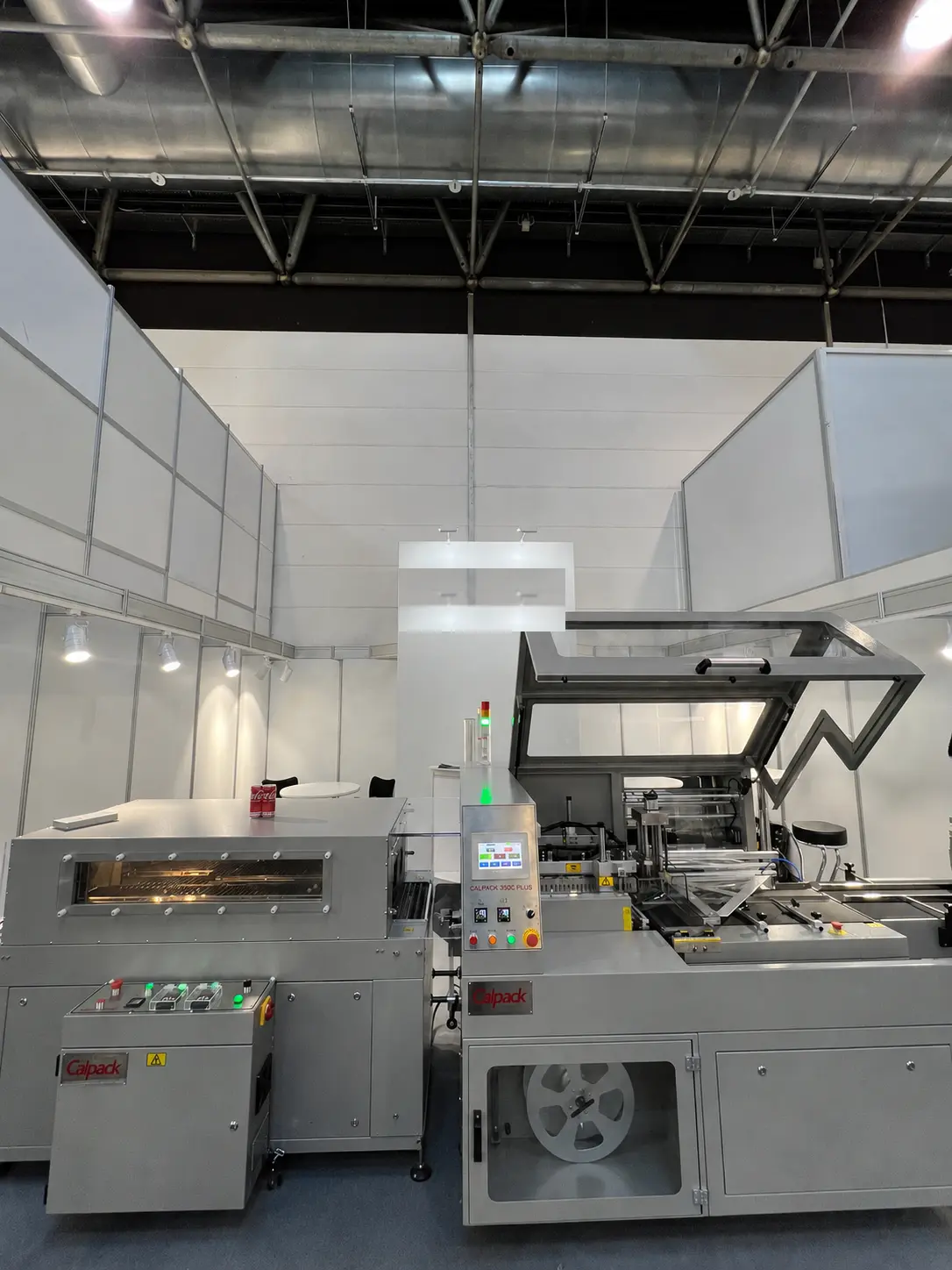

Automatic packaging systems
Packaging lines,
built to move.
We design, integrate, and install complete automatic shrink-wrap packaging lines that keep production moving.
Full-lineDesign through installation
About us01 — The specialist
One partner for your complete packaging line.
Full Dynamics Inc. specializes in automatic shrink-wrap packaging. We design and install complete packaging lines—from equipment layout and machine integration to final start-up—so every component works together as one efficient system.
Purpose-built layouts Integrated equipment Production-ready installation
What we do02 — Complete capability
From concept to conveyor.
Every line is planned as a complete production system—not a collection of disconnected machines.
02
Equipment Integration
Automatic shrink wrappers, tunnels, conveyors, and controls integrated into one reliable production line.
03
Installation & Start-Up
Professional installation, commissioning, and operator guidance to get your line production-ready.
Products03 — Equipment spotlight
Maximum output150packs / min

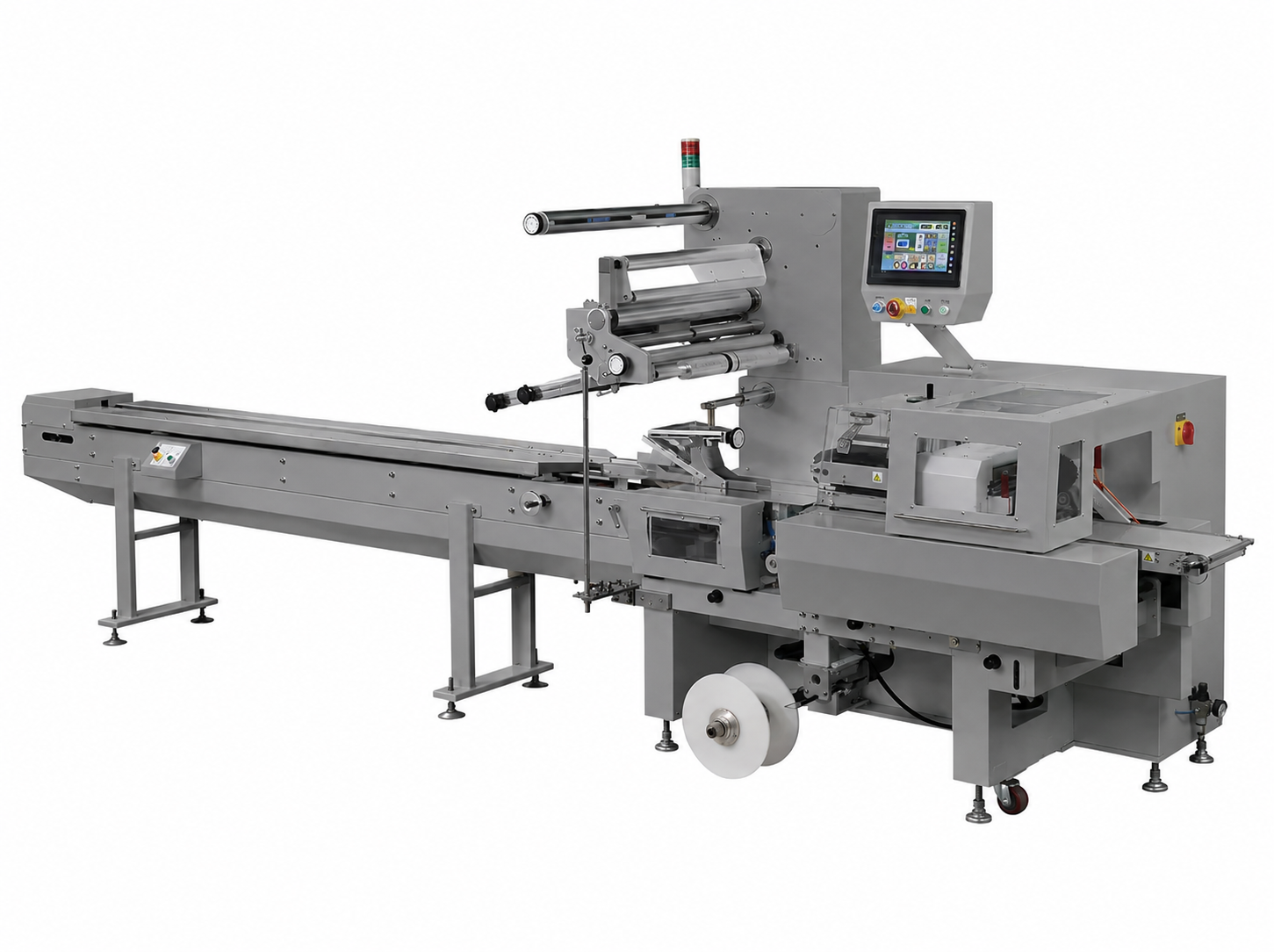

Horizontal flow wrapping
Flow Pack
Servo 03
A center-sealed flow pack system available in multiple size configurations for flexible, high-speed production.
- Packing type
- Flow Pack (center sealed type)
- Film width
- Small: max. 370mm · Medium: max. 570mm · Large: max. 770mm
- Product width
- Small: max. 70mm · Medium: max. 170mm · Large: max. 270mm · Extra: max. 370mm
- Product height
- Small: max. 30mm · Medium: max. 60mm · Large: max. 90mm · Extra: max. 120mm
- Speed & output
- Rotary single end sealer: max. 75 packs/min · Rotary double cutter: max. 150 packs/min
- Packing length
- 60–600mm
- Power supply
- 220V / 380V / 415V, 50/60Hz, 3-phase · Air pressure: 0.6 MPa
- Machine size & weight
- 4700mm L × 1050mm W × 1670mm H · Approx. 850kg
Operating speed20–60packs / min

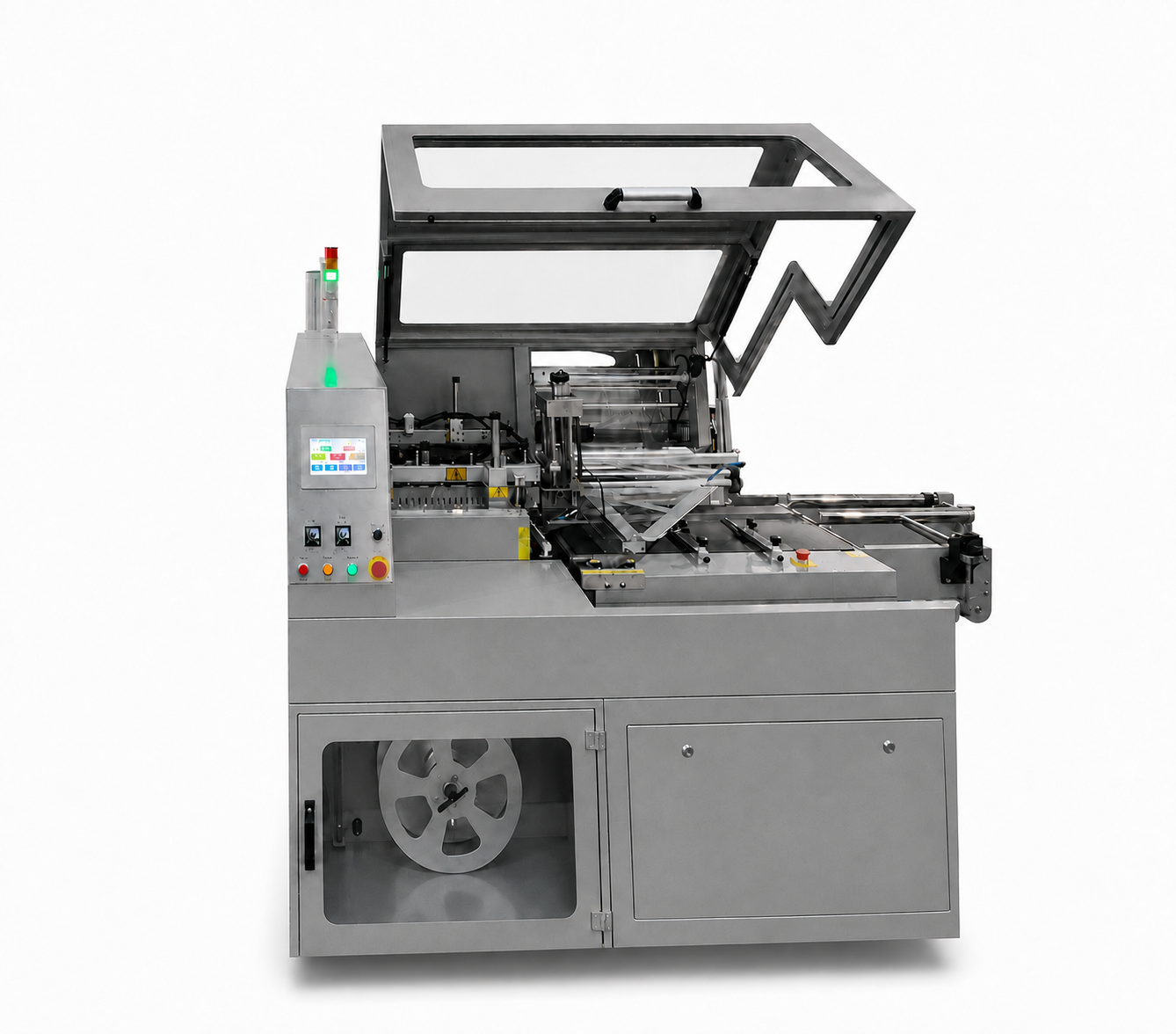

Automatic L-sealing system
FD
L-SEALER
A flexible automatic L-sealer designed for shrink packaging across a wide range of product sizes and film materials.
- Type
- L Sealer Automatic
- Maximum speed
- 20–60 packs/min, depending on product size and shrink film material
- Packaging dimensions
- Width: 60–400mm · Height: 5–180mm · Length: 100–550mm
- Sealing bar size
- 630 × 450mm (L × W)
- Conveyor belt speed
- 32–42m/min
- Working height
- 850mm ± 50mm
- Power requirements
- 220V, 1-phase, 3kW · Voltage configurable for domestic power requirements
- Air pressure
- 0.6–0.8 MPa (100psi)
- Machine dimensions
- 1910 × 1600 × 1410mm (L × W × H)
Our process04 — Built around your operation
A clear path to a better line.
We start with your production requirements and carry the project through installation and handoff.
- 01Assess
Products, speeds, space, and goals.
- 02Engineer
Layout, equipment, and line flow.
- 03Integrate
Machines, conveyors, and controls.
- 04Install
Commission and prepare for production.
Ready to improve your packaging line?
